Monobloc 4-pipe heat pump Duran 12 Monobloc 4T Three-phase

Duran 12 Monobloc 4T Three-phase

Monobloc 4-pipe heat pump

  • Structure colour RAL 7016

  • Twin- rotary inverter compressor

  • External diverter management by DHW priority

  • Inverter circulator included

  • Silent box for compressor included

  • Attractive deflector grid protecting the fan

  • Climate control included

  • EC fan included

  • Hot gas in priority defrost

  • “Economy” function to reduce consumption and noise

  • Remote Brain for remote heat pump operation management (optional)

Documentation Accessories Technical specifications Request info

The DURAN heat pump units are particularly suitable for applications using radiant panel heating systems or low temperature applications such as suitably dimensioned fan-coil, thermal ventilation and AHUs for delivery temperatures of 50°C. All versions are fitted with noiseless EC axial fans and with Twin Rotary inverter compressors that allow complete power management of each individual component. In fact, the compressor, fan and circulators are continuously regulated by a programmed control unit with an internally developed control logic. It has been designed to be intuitive immediately usable; this allows the unit to be inserted into a large number of system configurations.

The 4-pipe units can control a high and low temperature circuit simultaneously.

The speed of the compressor, fan and circulators is continuously regulated by the control unit.

The DURAN units are characterised by high efficiency and the integrated management of the circulator that allows high temperature water to be produced via a heat exchanger specific for DHW production.

On the system side heat exchanger the unit is able to produce hot or cold water to meet the building's seasonal heating and cooling requirements.
On the heat exchanger for the production of domestic hot water, the unit produces high temperature water to send to an external storage tank, which has been chosen and sized according to the requirements of the system.

Seasonal modes

The unit operates in a different way according to the season:
The system switches between the various operating modes (within a season) automatically by reading the temperature probes and the programmed set points. Switching times and logics are designed to ensure maximum system efficiency and reliability.

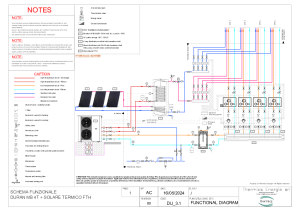

This configuration must be associated with a suitably sized boiler in which to store the high temperature water. The upper part of the boiler must be fitted with a thermowell in which to insert the hot water probe, through which the unit controller monitors whether hot water has to be produced.

Summer operation

There are three summer operating modes:

  1. Chiller mode
    The unit produces only chilled water for the cooling system.
  2. Chiller mode with the simultaneous production of domestic hot water
    The unit produces chilled water for the cooling system and domestic hot water at the same time. Full power is recovered for the production of domestic hot water.
  3. Heat pump mode for the production of domestic hot water
    If there is no cold load, and on request by the hot water probe, the unit heats the water in the water storage tank using the finned pack coil as an evaporator. The use of warm outside air as a heat source guarantees extremely high COP levels.

funzionamento estivo
ciclo-frigorifero-estivo

Winter operation

There are three winter operating modes:

  1. Heat pump mode for heating
    The unit produces hot water at the system side heat exchanger for heating.
  2. Heat pump mode for domestic hot water
    High temperature hot water is produced at the heat exchanger connected to the domestic hot water storage tank.
  3. Heat pump mode with the simultaneous production of domestic hot water
    DHW is produced at the same time as hot water for the heating system by desuperheating the gas R410a while maintaining a high COP.

funzionamento-invernale
ciclo-frigorifero-invernale

Automatic Seasonal Adjustment

The system switches automatically between the various operating modes according to a priority logic for the production of domestic hot water and, when there is loading at the same time, recovering condensation energy for the production of hot water. .

regolazione stagionale

Technical specifications

Compact air-water inverter heat pump for outdoor installation with an EC brushless axial fan and a BLDC Twin Rotary Inverter compressor. It has a cutting-edge design, the structure of which is polyester powder coated and oven cured, RAL 7016 coloured.

The structure is self-supporting with removable panels to make inspection and maintenance easer.

The heat source is the outside air down to a minimum of - 20°C. Low noise is guaranteed by an intelligent control system that regulates the speed of the compressor and fan according to actual requirements. The use of anti-vibration mountings for the compressor and multi-layer noise insulation on the casing mean that noise is reduced to a minimum.

The control logic allows:

  • Fan and compressor regulation for special installation environments.
  • Electronically controlled delivery temperature via the heating or cooling curve.

Cooling circuit

The refrigerant gas used is R410a. Cooling circuit with very high efficiency twin rotary inverter compressor. Pressure transducers and safety pressure switch. Stainless steel plate desuperheating exchanger and plate heat exchanger for evaporation / condensation. Copper-aluminium finned pack evaporator with special hydrophilic treated finning.

Dual defrost system by way of hot gas injection and/or reverse cycle.

Heat exchangers

The source side heat exchangers are made of copper pipes and aluminium fins coated with hydrophilic paint that encourages water run-off. The user side braze-welded stainless steel plate exchanger allows the amount of refrigerant gas to be reduced to the minimum and maximise the efficiency due to the large heat exchange surface.

Fan

The brushless EC axial fan has been designed to reduce noise to a minimum and to maximise efficiency. The speed of rotation is continuously regulated by the control unit.

Control and protection

Carel electronic control with integrated inverter driver control combined with the compressor, pump and fan modulation. Climate logic management. Standard ModBUS communication protocol.

The unit is equipped with a series of alarms designed to protect it from faults. These are managed entirely by the control unit that makes them available and accessible. It is also possible to access the controller via the control unit if you need to make any adjustments.

Remote controller (optional)

The control unit consists of CAREL hardware and can be combined with a highly intuitive controller with which all the operating parameters, set points and usage settings can be controlled. The controller allows direct connection to the heating system with or without a storage tank, or more commonly, by connecting the latter to the heating system at two or four points. The storage tank is charged at a set point for DHW and with a heating or cooling curve for heating / cooling circuit.

Testing

All units are fully assembled and wired. They are inspected to high standards, undergo leak and vacuum cycle tests, and are filled with an eco-friendly refrigerant. They undergo a complete functional test before being delivered. All units comply with European Directives and have a CE marking and relative certificate of conformity.

Auxiliary controls

Other auxiliary controls are possible with HP1 - GOLD system expansion, an expansion module that connects as a BUS accessory to the existing control unit and allows important and innovative functions to be added that are useful for more complex systems:

  • DPAC: a 0-10V input that regulates the power used by the heat pump according to the instantaneous availability of the solar energy system. This is an extremely innovative logic developed by Thermics Energie: when the heat pump is set to "ECO" mode, it operates according to the availability of energy and its wide modulation range means that it will avoid drawing electricity from other sources.
  • MIX1: available for the management of a general system mixed unit with 0-10V signal.
  • INFO SEASON: an outlet that alerts the rest of the season change system.
  • HEAT TRANSF: a setting that specifies the logics used for heat transfer through a plate heat exchanger or a secondary transfer boiler.
  • HYBRID: relay activation of heating integration using a second source both on the DHW side and on the heating side.

Multiple units can also be controlled with HP2 – expansion module for cascade control. To extend the life of the heat pumps, the controller can intelligently control the rotation of the units in the case of partial load.

hp1

Remote Brain

To control all heat pump activities remotely.

  • Remote Brain is a simple and inexpensive system for monitoring residential installations that allows you to switch on Thermics Energie heat pumps, control their respective temperatures, monitor their operation and to provide the heating comfort requirements of the home directly from any device, both inside and outside the home. This innovative system means that all the main terminal units for HVAC and the production of domestic hot water are constantly monitored, to enable the heat pump to be used in the most efficient way and to obtain maximum savings in terms of energy and cost.
  • The information is transmitted locally using Wireless technology to Tablets, Smartphones and PCs directly from the ADSL router, which uploads it to a data collection CLOUD. This means that the data is always up to date and can be used at any time and on any device, wherever you are. The system also allows you to report heat pump malfunctions, meaning that trained technicians can take the appropriate action quickly. They will immediately know the reason for the malfunction and be able to restore correct operation of the heat pump rapidly.
  • Remote Brain has an annual charge for maintaining the service and its functions (see t-Service).

remote brain

tSERVICE

is the service dedicated to service centres. tService makes carrying out maintenance faster and more effective with a ready-to-use remote control solution specifically designed for service centres.
Functions available with tService:

  • Reading and writing variables in real time
  • Data logging with frequencies up to 5 seconds
  • Alarm management with e-mail notification
  • Reports and graphs, using up to 300 variables
  • Programmable SW update checks

With tService, you can take out a 1-year subscription, or longer if you wish, in order monitor the heat pump at all times.

t service

Technical specifications

Electrical data
Supply
400V/3/50Hz
Energy efficiency class (*)
A++
Energy efficiency class(**)
A+
Cooling (A35/W18)
Cooling capacity 100%
kW
15.64
Cooling capacity 66%
kW
9.87
Cooling capacity 33%
kW
4.83
Compressor power input 100%
kW
2.58
Total power input 100%
kW
2.84
E.E.R.
W/W
5.50
Cooling (A35/W7)
Cooling capacity 100%
kW
10.90
Cooling capacity 66%
kW
6.85
Cooling capacity 33%
kW
3.32
Compressor power input 100%
kW
2.81
Total power input 100%
kW
3.07
E.E.R.
W/W
3.56
Heating (A7/W35)
Heat output 100%
kW
12.32
Heat output 66%
kW
7.72
Heat output 33%
kW
3.74
Compressor power input 100%
kW
2.51
Total power input 100%
kW
2.77
C.O.P.
W/W
4.44
Heating (A7/W45)
Heat output 100%
kW
11.91
Heat output 66%
kW
7.42
Heat output 33%
kW
3.59
Compressor power input 100%
kW
3.07
Total power input 100%
kW
3.33
C.O.P.
W/W
3.57
Compressor
Type
Twin Rotary DC Inverter
Number
1
Fan
Type
EC Brushless
Number
1
Air flow rate
m³/h
5500
Useful head
Pa
16.00
Power input
kW
0.20
Refrigerant
Type
R410A
Coolant load
kg
3.00
Hydraulic circuit System side
Rated heating flow rate (A7/W35)
m³/h
2.12
Useful head (A7/W35)
mca
3.0
Pump power input (A7/W35)
kW
0.06
Water connections
inches
1”
Noise
Sound pressure at 10 m
dB(A)
40
Sound power according to EN 12102
dB(A)
55
Dimensions and weight
Outdoor unit dimensions (L×H×D)
mm
1135 x 1288 x 545
Weight
kg
210
DURAN 12 MB 4T RAL 7016 Three-phase inverter heat pump
8T01124T10102

* Energy efficiency class for low temperature (35°C) heating applications under "average" climatic conditions
** Energy efficiency class for medium temperature (55°C) heating applications under "average" climatic conditions

Accessories

Description
Code
Y-strainer, brass DN25
8TCM00120
DUO DHW boiler 300 l / 80 l water for heating 1 coil - PDC – B
8TBO00330.01
Boiler Probe - NTC 10K - L=1500 mm
6TSS00017
Carel remote display
8TCR02050.01
Activation of REMOTE BRAIN monitoring system
8TSI01200.01
REMOTE BRAIN T-Service monitoring for 5 years
8TCR90130
