Inverter heat pump Interna 6

Interna 6

Inverter heat pump

  • Energy efficiency A++

  • Twin Rotary inverter compressor

  • Electronic expansion valve

  • Extremely silent

  • EC centrifugal fan

  • Modulating circulation pump included

  • Motorised diverter valve (not included)

  • Extremely robust and resistant to wear

Documentation Technical specifications Request info

Innovative Air – Water heat pump suitable for indoor installation. The unit is fitted with a high performance EC centrifugal fan that guarantees low noise. It has been designed to be ducted towards the outside and is fitted with a Twin Rotary inverter compressor. The units have been designed for new buildings and renovations where it is important not to modify the aesthetic appearance of buildings (historic buildings, architectural constraints etc.) and in buildings in which the indoor space is limited.

Cooling circuit

The cooling circuit is made using components manufactured by leading international companies and according to UNI EN 13134 regarding braze-welding processes The refrigerant gas used is R410A. The cooling circuit includes: 4-way cycle reverse valve, electronic expansion valve, liquid separator, liquid receiver, inspection valves for inspection and maintenance, safety device according to PED regulations (high pressure pressure switch), pressure transducers to accurately adjust the evaporation and condensation pressure and filters to prevent the thermal expansion valve becoming clogged.

Compressors

The DC inverter compressors have been specially designed to operate with R410A. They are fitted with a thermal cut-out and are installed on rubber vibration dampers. The compressors are installed in a compartment that is separate from the air flow in order to reduce noise.

Air side heat exchanger

The new fin design increases the heat exchange area, decreases air resistance, reduces the amount of energy used and increases performance. The fins covered with a hydrophilic film and the seamless copper pipes optimise the heat exchange efficiency.

Fans

The fans are centrifugal (Ziehl EC Blue). They are all statically and dynamically balanced in compliance with EN 60335-2-80 (household and similar electrical appliances safety). They are characterised by having a modulating air flow 300 - 900 m3/h and guarantee a useful head for 10 meters of DN250 pipe. The fans are installed on rubber vibration dampers to reduce noise. All the electric motors are brushless. The motors are direct coupled and have an integrated thermal cut-out. The motors all have and IP 44 rating.

User side heat exchangers

The user side heat exchanger is of the braze-welded plate type and are made from AISI 316 stainless steel and factory insulated using closed cell materials.

Duct performance

interna 06 prestazioni idrauliche

Drops inside exchanger = 50 Pa

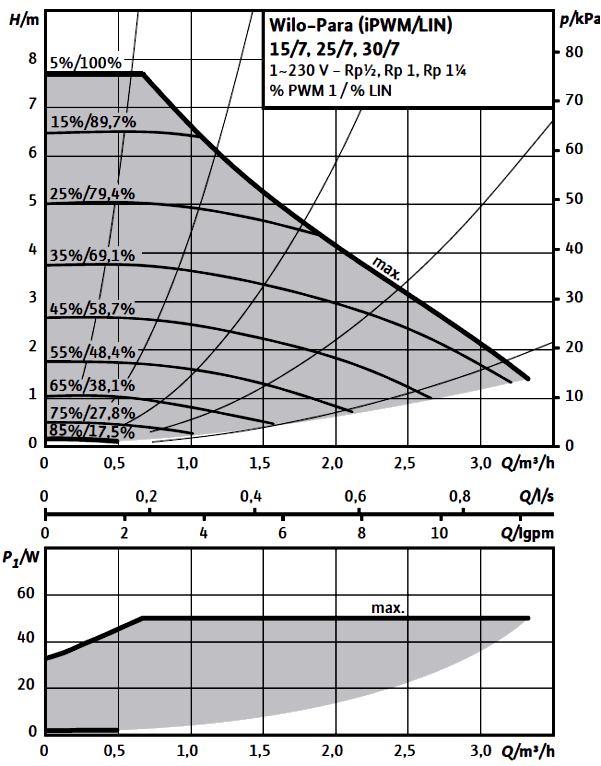

Hydraulic performance

interna 06 prestazioni idrauliche 2

Dimensions

interna 6 dimensioni

Technical specifications

Electrical data
Supply
230V/1/50Hz
Starting current
A
Inverter
Cooling (A35/W18)
Cooling capacity
kW
8.05
Power input
kW
1.52
E.E.R.
W/W
5.29
Cooling (A7/W35)
Cooling capacity
kW
5.62
Power draw
kW
1.54
E.E.R.
W/W
3.64
Heating (A7/W35)
Heat output
kW
6.16
Power input
kW
1.34
C.O.P.
W/W
4.59
Heating (A7/W45)
Heat output
kW
5.99
Power input
kW
1.65
C.O.P.
W/W
3.62
Compressor
Type
Rotary DC Inverter
Number
1
Rated load current
A
Inverter
Fan motor
Type
Radial – EC
Number
1
Air flow rate
m³/h
300÷900
Refrigerant
Type
R410A
Coolant load
kg
0,75
Hydraulic circuit
Rated heating flow rate at ΔT 5°C
m³/h
0.7
Minimum heating flow rate at ΔT 7°C
m³/h
0.5
Load loss
kPa
6
Water connections
inches
G ¾”
Noise
Sound pressure at 5 m
dB(A)
42
Dimensions and weights
Unit dimensions (L×H×D)
mm
655 x 753 x 502
Net weight
kg
75
Product code
8T11062M30101
